Finger Pulse Oximeter For Kids

Introduction

-Follows a Photoelectric Oxyhemoglobin Inspection Technology adopted in accordance with Capacity Pulse Scanning & Recording Technology

-The Pulse Oximeter can be used in measuring the pulse oxygen saturation and pulse rate through the finger.

-The product is suitable for being used at home, in hospitals, in oxygen bars, in community healthcare, physical care in sports (It can be used before or after doing sports, it is not recommended to use the device during the process of having sports).

Main Features

【Convenient】Integrated with SpO2 probe and processing display module. Small in volume, light in weight, and convenient for carrying. The operation of the product is simple, with low power consumption
【Clear Display】displays SpO2, pulse rate, bar graph, and pulse waveform display. The display mode can be changed
With measured data overruns limits and low-voltage alarm function
【Low-Voltage Indication】A low-voltage indicator appears if the voltage is low
【Fit for Kids】Small appearance, fitter for children

Main performance

Display Mode: 0.96"Dual-color OLED display
Screen Resolution: 128*64
SpO2 Measuring Range: 0%~100% (the resolution is 1%).
Accuracy: 70%~100%: ±2%, Below 70% unspecified.
PR Measuring Range: 30bpm~250bpm, (the resolution is 1bpm)
Accuracy: ±2bpm or ±2% (select larger)
Measurement Performance in Weak Filling Condition: SpO2 and pulse rate can be shown correctly when the pulse-filling ratio is 0.4%. The SpO2 error is ±4%, pulse rate error is ±2 bpm or ±2% (select larger).
Resistance to surrounding light: The deviation between the value measured in the condition of man-made light or indoor natural light and that of the darkroom is less than ±1%.
Power Consumption: less than 80mA
Voltage: DC 3.6V~4.2V
Power Supply: Voltage 3.6 rechargeable lithium battery × 1
Battery working hours: The theoretical number is 6 hours
Battery working life: Charge and discharge no less than 300 times.
Safety Type: Interior Battery, BF Type
Power Source: Electric
Warranty: 1 Year
After-sale Service: Repair and Replacement
Power Supply Mode: Removable Battery
Material: Plastic
Shelf Life: 1 year
Instrument classification: Class II
Type: Pathological Analysis Equipment
Place Of Origin: China
Color Option: Blue
Function: SpO2, PR, bar graph, pulse waveform
Working time: 6h
Charging time: 3h
Application: oximeter for kids
Dimension: 46(L) * 40(W) * 29(H) mm
Weight: About 35g (with a rechargeable buttony battery)

Packaging & Delivery

Single package size: 13*10*7 cm

Single gross weight: About 35g (with a rechargeable buttony battery)

Package Type: Packing with carton.

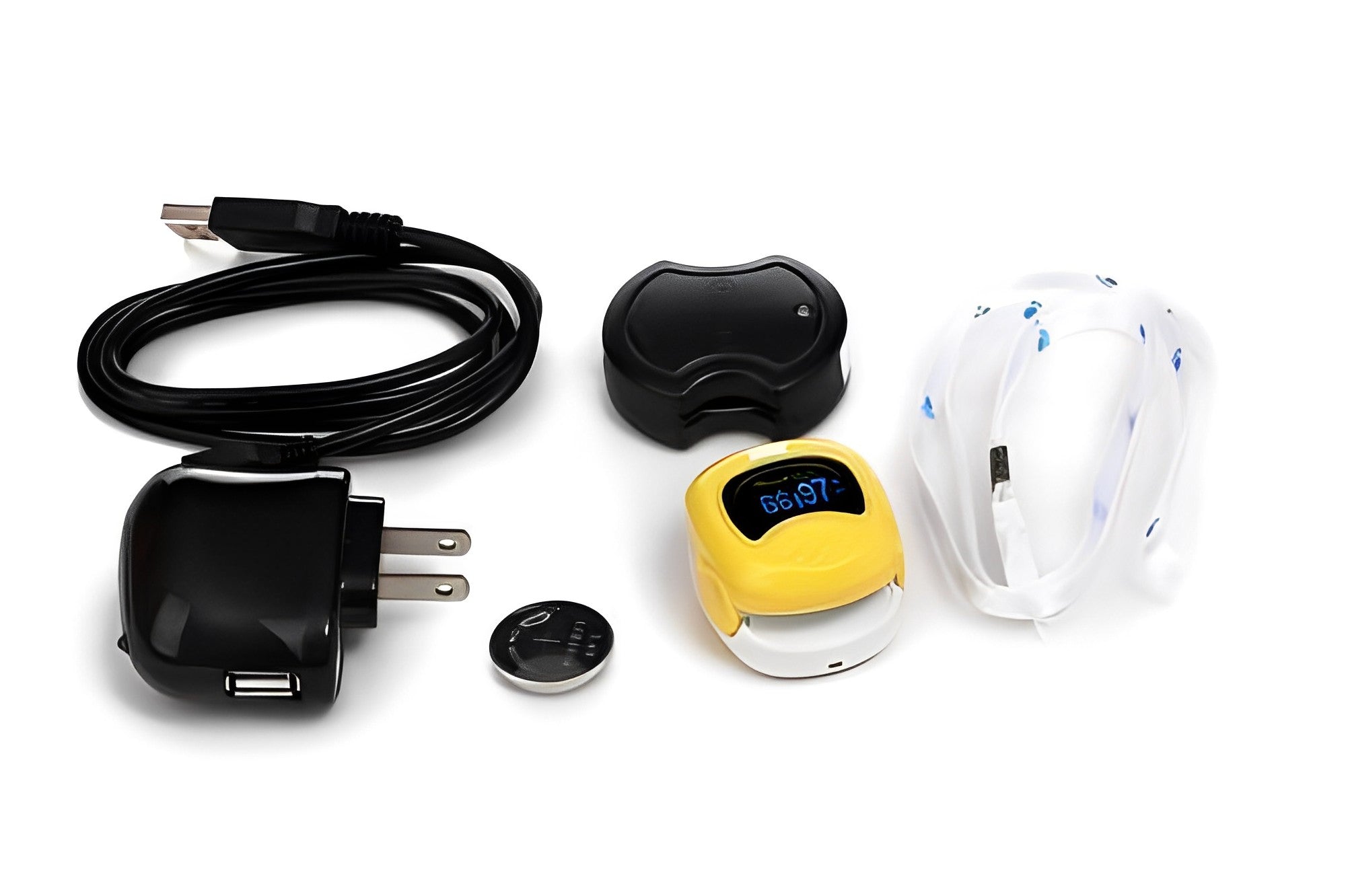

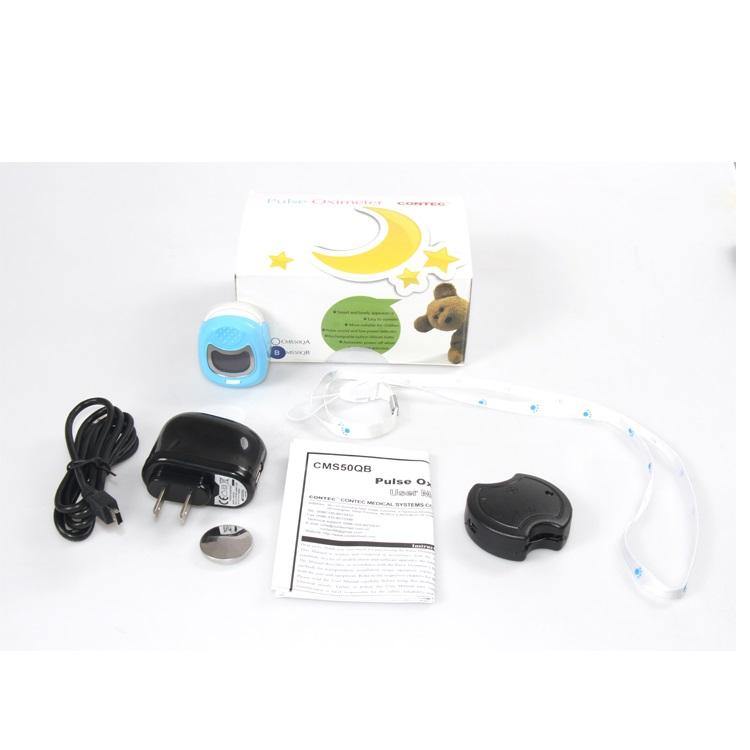

Accessories

1* Wrist strap

1* user manual

1* rechargeable button lithium battery

1* power adapter

1* charger

1* data line

1* Luxury box
